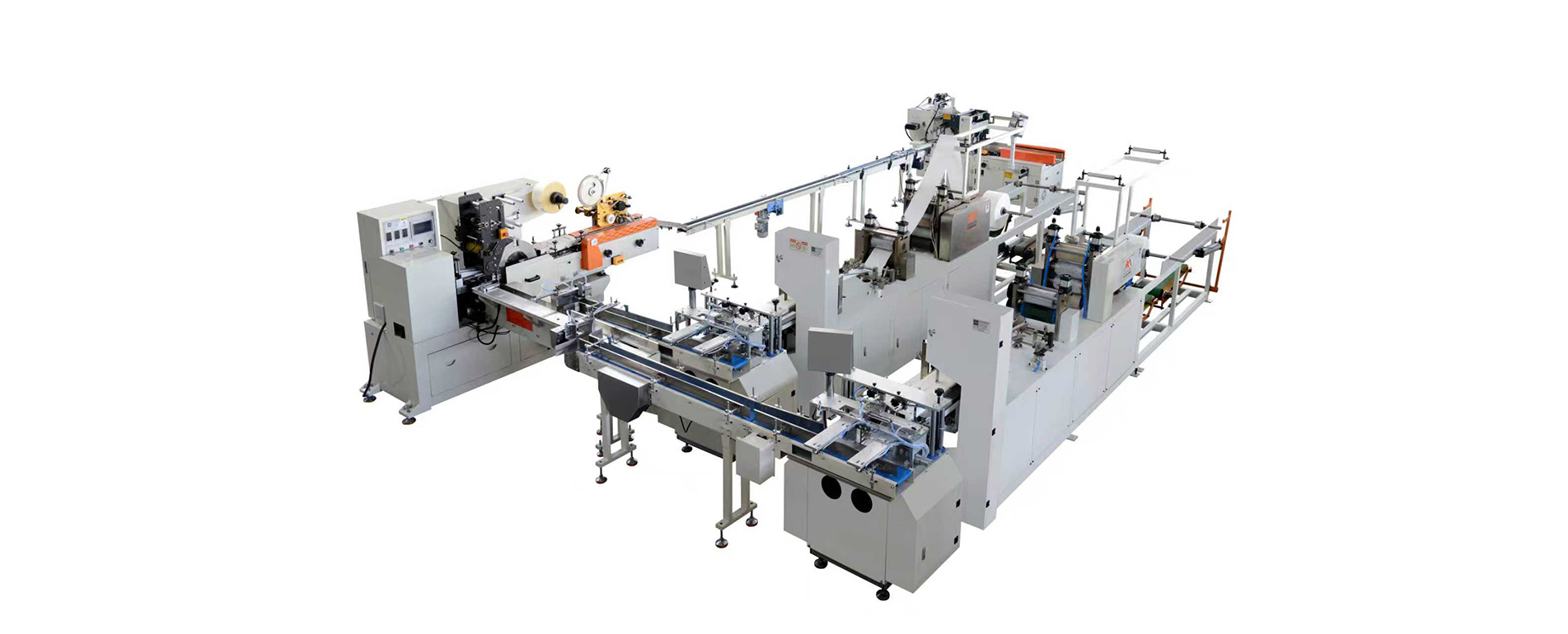

HX-170/400(200)
Facial Tissue Production Line
Production Line Process
2 jumbo roll paper stands - 1 set of double-sided 3D embossing glue lamination unit - longitudinal folding - transverse folding - slitting and counting - automatic stacking - conveying to single pack machine - conveying to intermediate packaging
Technical Parameter
| Jumbo roll width | ≤200mm |
| Jumbo roll diameter | ≤1500cm |
| Jumbo roll inner core diameter | 76mm |
| Unfold size | 200*200mm |
| Fold size | 100*68 mm |
| Small package size | ≤100*68 mm |
| Production speedr |
150m/min（about 700-800 sheets/min） |
| Midium package size | 8/10/12 bags/strip |
| Equipment Power | (3-phase 380V 60Hz) |
