HX-1575/2000/2900BL

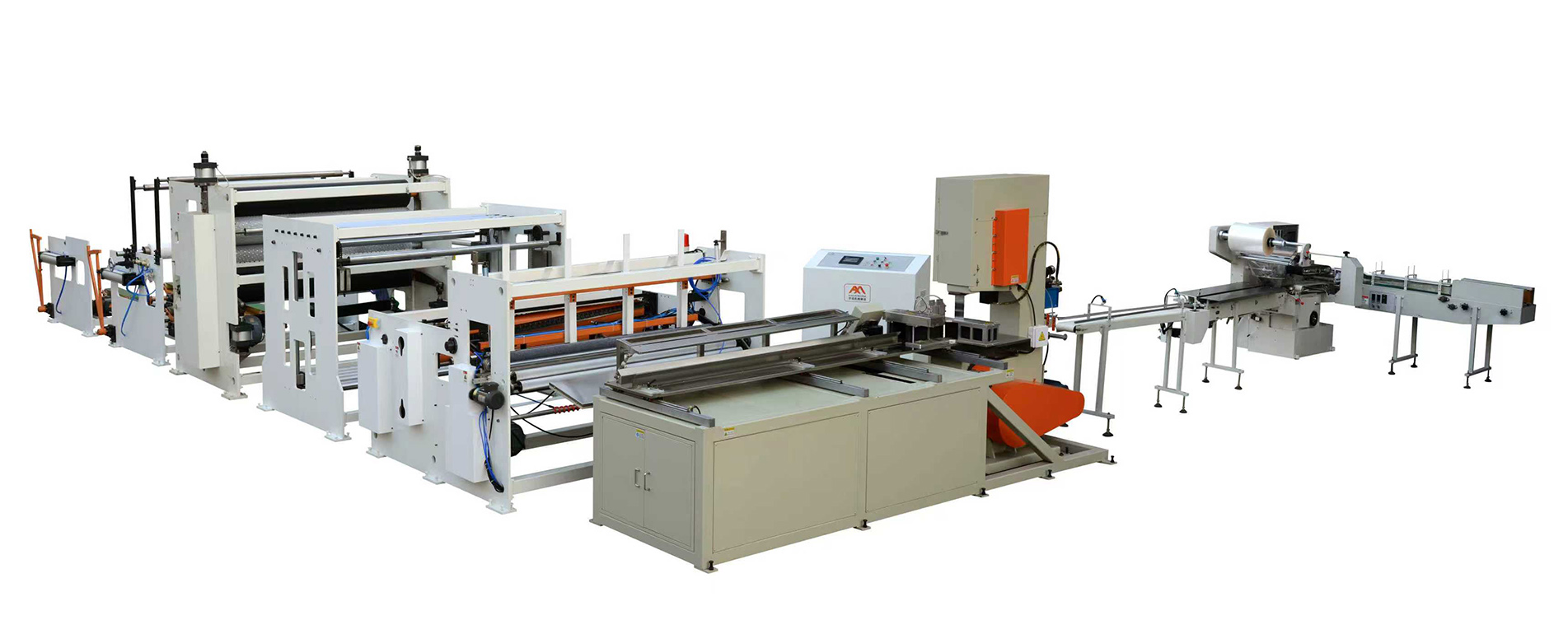

Glue lamination toilet paper and kitchen towel machine( connect with band saw machine for cutting)
Production Line Process
2个原纸架-1组双面立体压花单元-1套缓纸单元-打孔压合收卷单元-输送到带锯自动切--输送到包装
Equipment Introduction
1. Adopt PLC programmable controller to control the production, main motor frequency control.
2. Man-machine conversation, easy operation with high efficiency. Machine stop when raw paper broke.
3. Jumbo Roll Paper is pneumatically uploaded onto machine, with unwinding web tension control device.
4.The rewinding process of the product is tight first and loose afterward, with its tension adjustable. Automatic changing roll, rewinding, tail cutting and sealing, then finished log output.
5. Bearing, electric component and synchronous belt use famous brand.
Technical Parameter
| Jumbo roll width | ≤2000mm |
| Jumbo roll diameter | ≤1500cm |
| Jumbo roll inner core diameter | 76mm |
| Perforating distance | 100-250mm |
| Finished roll core diameter | Φ32～50 mm |
| Production speed | 100-180m/min |
| Finished roll outside diameter |
90-150mm(tightness of roll can be adjusted) |
