HX-270

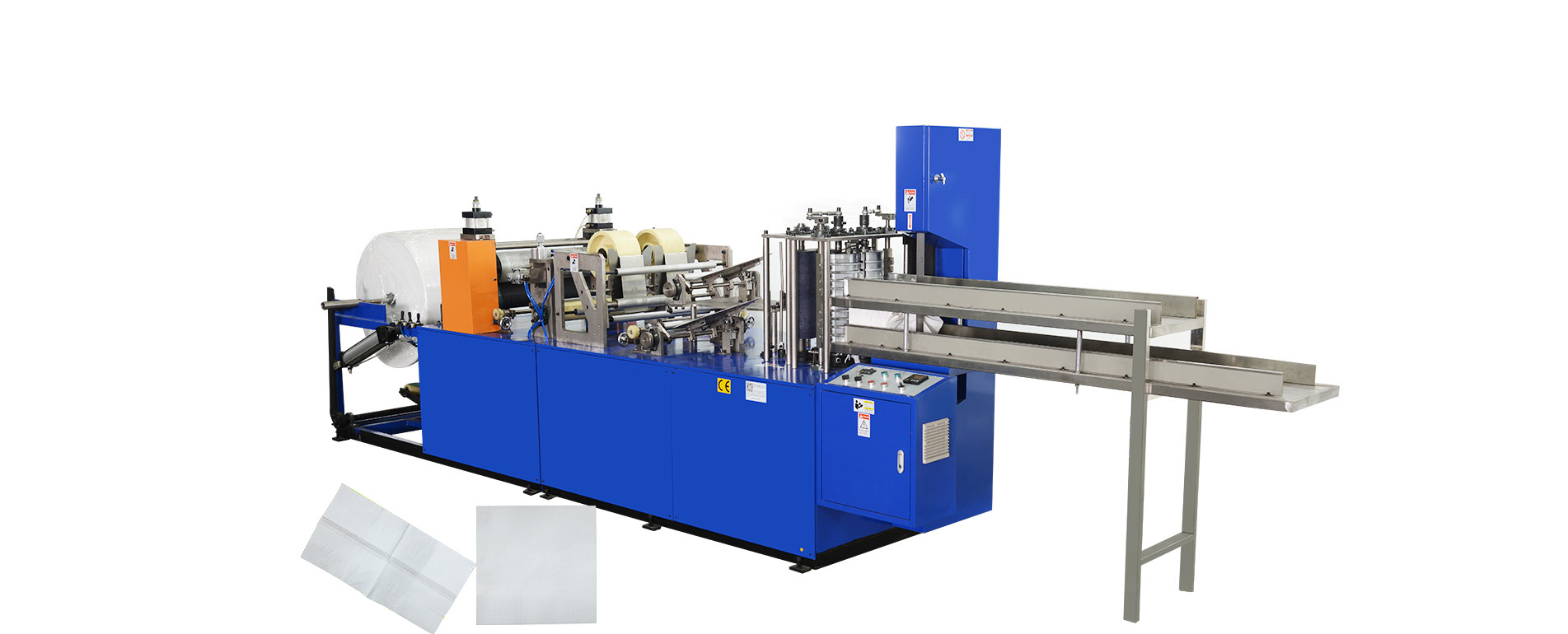

Napkin Paper Machine
Equipment Introduction
4 lines output, can fold 1/4 and 1/8 napkin paper
Working Principle
Load jumbo roll (Pneumatic load)—flat belt unwinding paper —embossing —cutting —lengthways fold—counting—crosswise fold—automatic cutting—finished product output.
Technical Parameter
|
Finished product folded size(mm) |
135*135± |
| Finished product unfolded size(mm) | 270*270 |
| Jumbo roll specification(mm) | ≤W 480*φ1200 |
| Production speed(pcs/min) | 1200-1600 |
| folding type | 1/4、1/8 |
| feeding device | adopt flat belt feeding raw paper，AP change wheel stepless adjustment |
| Pneumatic load，automatic pneumatic counting | |
| Equipment power | 3KW 380V 50HZ |
| Equipment weight (T) | 1.6 |
