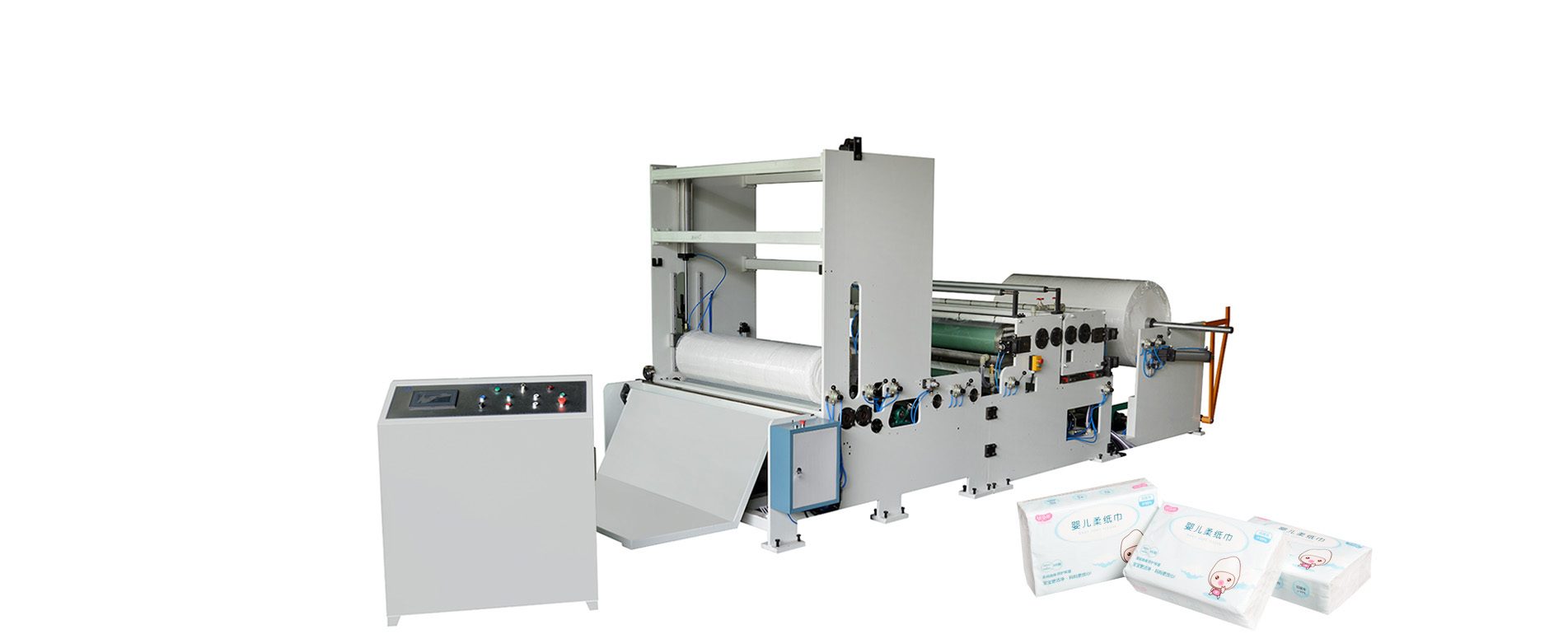

HX-1500
Lotion tissue coating and slitting machine
Equipment structure and features
1. This equipment changes the softness of toilet paper, facial tissue and napkin paper, and can produce moisturizing napkin with different ratio of softener material. Napkin can increase softness, make the product more advanced and double the profit.
2. The equipment adopts frame wall board type, thick and strong, and effectively improves the stability of the whole machine under high speed operation.
3. The whole machine with wall type panel,driven by and independent motor,and the tension control can be operated on the PLC.

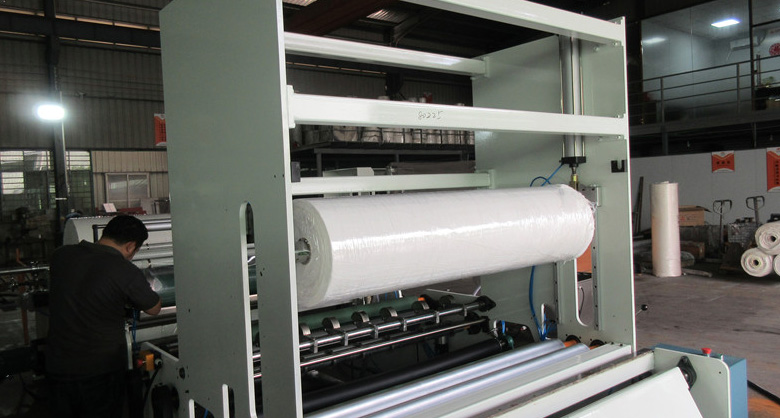

4. Rewinding smoothly and without crease, and adopts the jumbo roll broken paper detection.

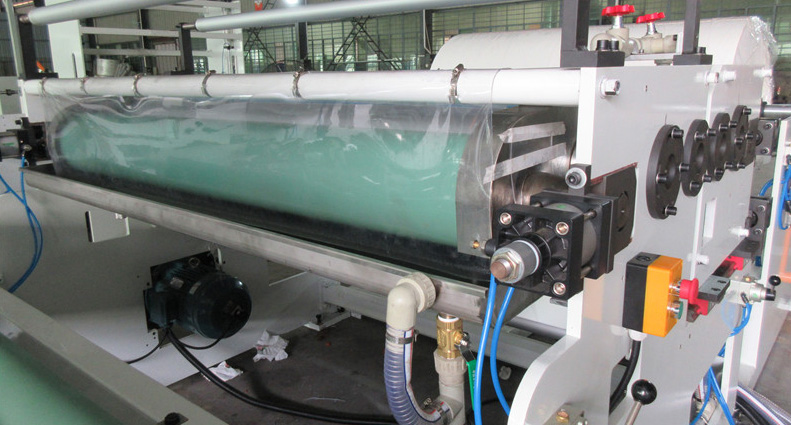

5. Coating material evenly and won't leak lotion.
Technical Parameters
| Function | Unwinding – lotion coating system (automatically adding cream, constant temperature) – Rewinding unit– discharging device |
| production speed(m/min) | The production speed of the equipment is 300 m/min. Stable production speed of coating 150-250 m/min |
| Jumbo roll width(mm) | ≤1480 |
| Jumbo roll diameter(mm) | ≤1400 |
| Minimum Cutting Width(mm) | 200 |
| Machine Power | 15.25KW (380V 50HZ) |
|
Machine Weight ( T) |
about 6.5 |
| Machine Overall Size (L*W*H)(mm) | 7100*2300*2400 |
