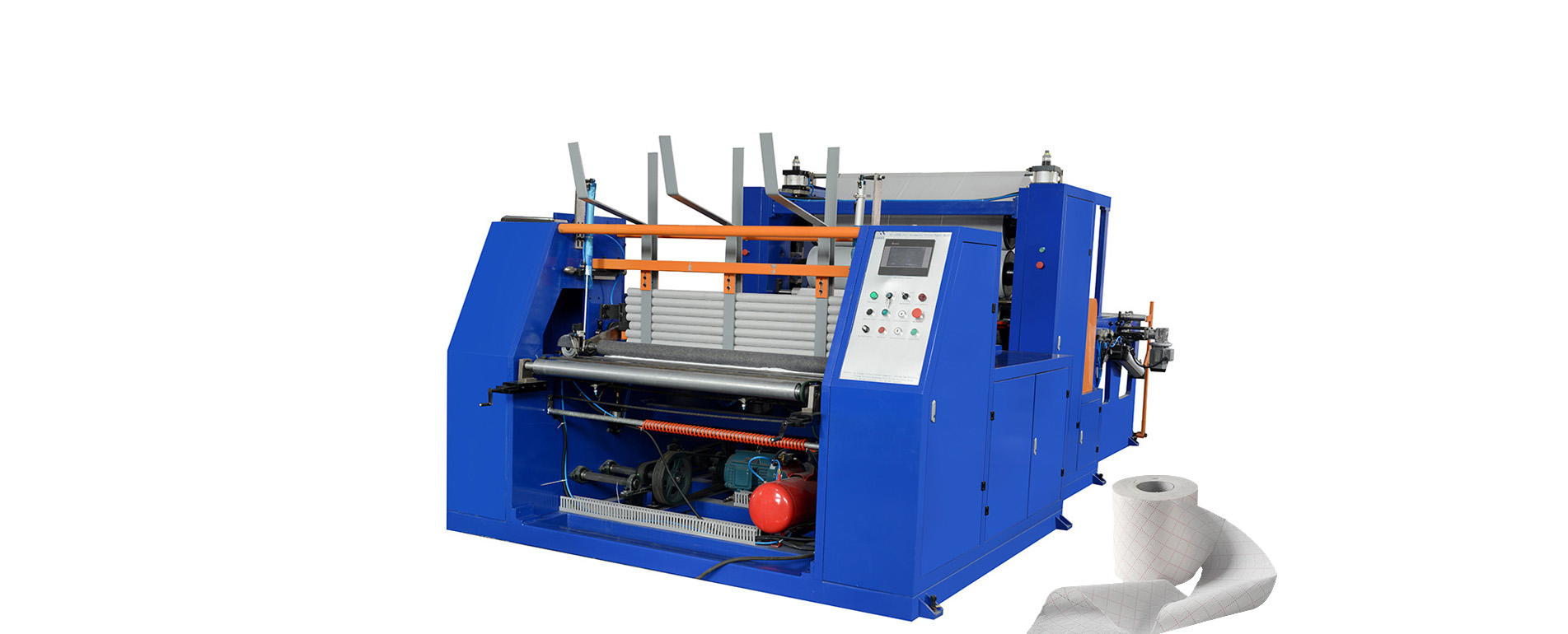

HX-1300B
Glue lamination toilet paper machine
Equipment Introduction
1. Adopt PLC programmable controller to control the production, main motor frequency control.
2. Man-machine conversation, easy operation with high efficiency. Machine stop when raw paper broke.
3. Jumbo Roll Paper is pneumatically uploaded onto machine, with unwinding web tension control device.
4.The rewinding process of the product is tight first and loose afterward, with its tension adjustable. Automatic changing roll, rewinding, tail cutting and sealing, then finished log output.
5. Bearing, electric component and synchronous belt use famous brand.
Technical Parameter
| Production speed (m/min) | 150-200 |
| Weight of jumbo roll (gsm) | 16-45 |
| Jumbo roll width (mm) | 1300 |
| Diameter of jumbo roll(mm) | ≤1500 |
| Jumbo roll inner core diameter(mm) | 76 |
| Perforating distance(mm) | 100-240 |
| Finished roll core diameter (mm) | Φ35～60 |
| Machine power (KW) | 15（380V 50HZ） |
| Weight (T) | about 8.3 |
| Overall size(LxWxH) (mm) | 5850*2530*2200 |
