HX-1480C

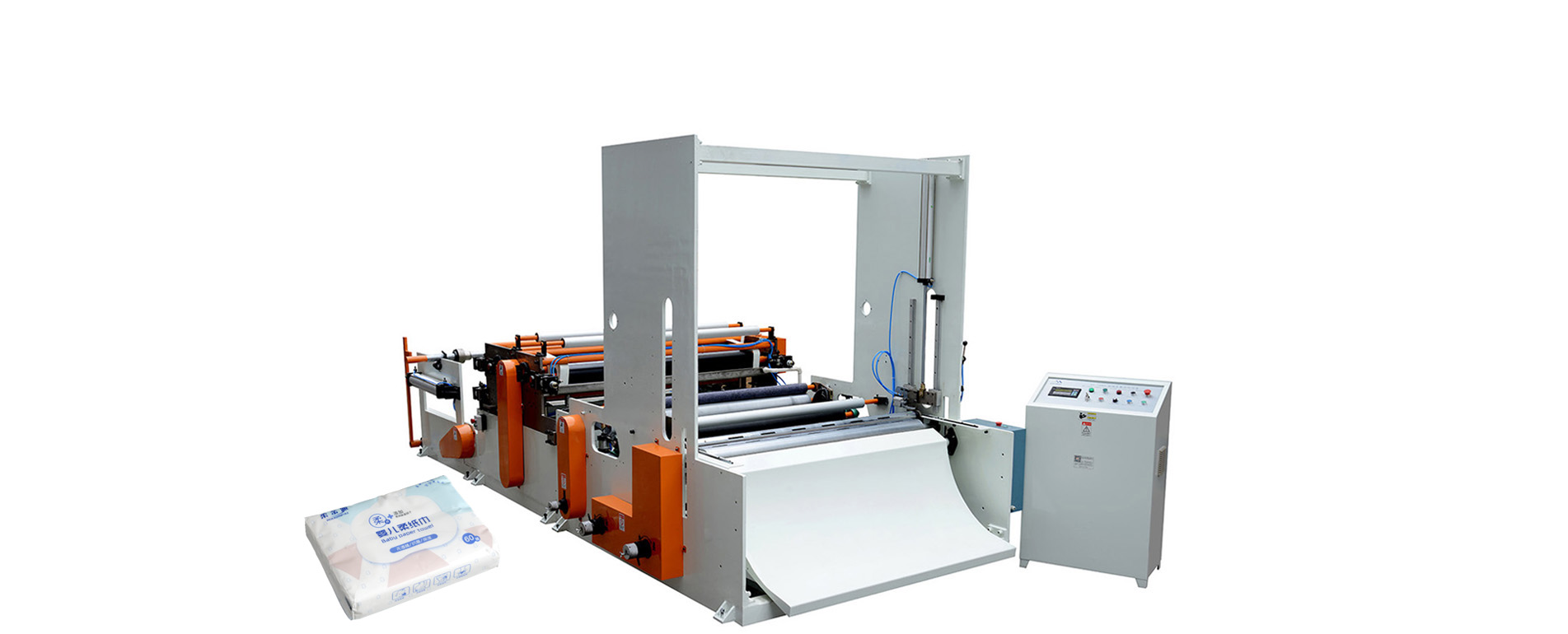

Cream Coating Machine

Video

Equipment Introduction

1. This equipment changes the softness of toilet paper, facial tissue and napkin paper, and can produce moisturizing napkin with different ratio of softener material. Napkin can increase softness, make the product more advanced and double the profit.
2. The equipment adopts frame wall board type, thick and strong, and effectively improves the stability of the whole machine under high speed operation.
3. The whole machine drive adopts synchronous belt transmission, the performance is stable, no noise.
 4. The jumbo roll unrolled by flat belt, equipped with pneumatic pressure and stepless governor, easy to adjust.
5. Rewinding smoothly and without crease, and adopts the jumbo roll  broken paper detection.
6. Coating material evenly and won't leak material.
7. The equipment is equipped with the automatic unload, effectively reducing the damage of the product and increase the security of operation.

Technical Parameter

Function unwind--glue spread--wind
production speed (m/min) 约120-180
Jumbo roll width (mm) ≤1485
Jumbo roll diameter (mm) ≤1100
Product diameter (mm) ≤1100
Equipment power (KW) 14.6 (380V 50HZ)
Equipment Weight (T) about 2
Equipment Overall size (L*K*H) (mm) 4800*2000*2350
