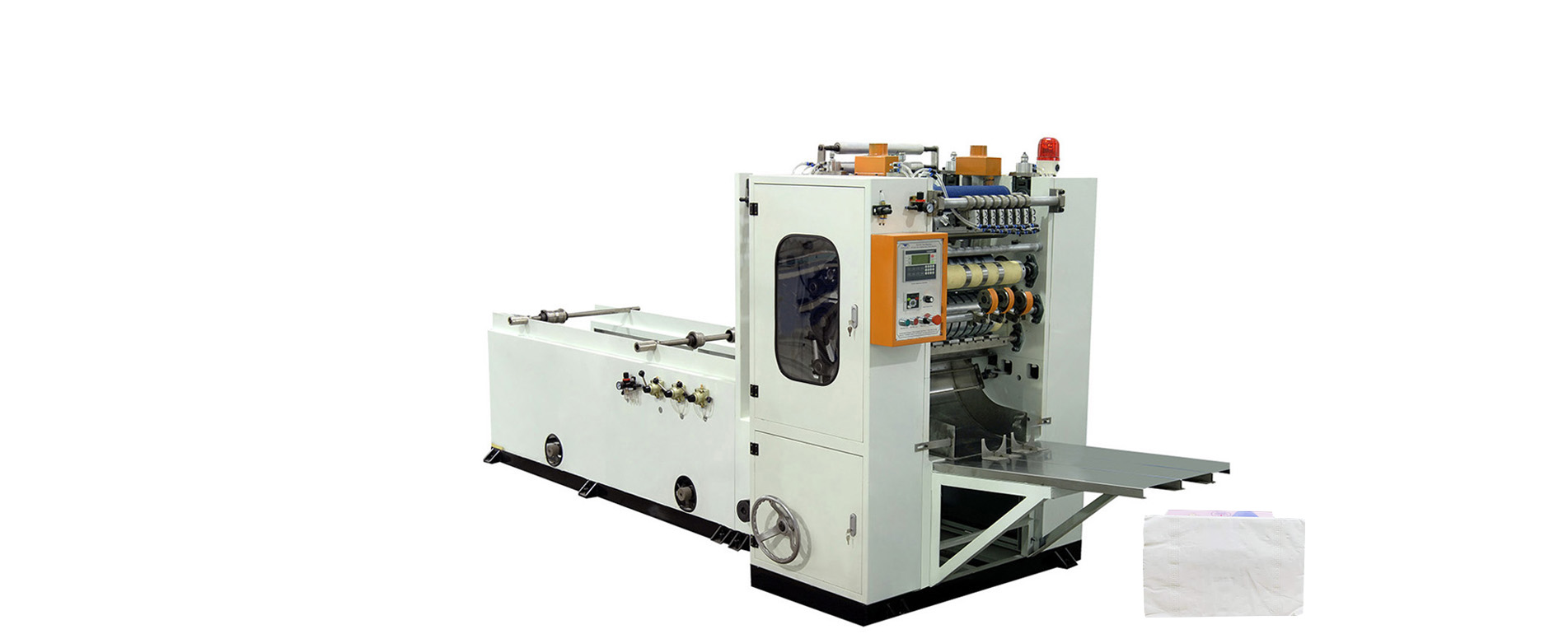

HX-200-2
Edge embossing Facial tissue machine
Equipment Introduction
This machine adopts vacuum absorption technique and mechanical hand assistant folding principle, which can automatically fold and count tissues. With edge embossing function, make two plies of paper not easy separate. The finished products are convenient for packaging. Machine will automatically stop when paper breaks so that to avoid waste products producing. The machine adopts inching drawing jumbo rolls principle which makes operation simple and safe. It is designed according to CE standard and equipped with emergency safety device. The Spare parts are processing precision, and main parts are in famous brand
Technical Parameter
| Equipment Model | HX-200/2 （3/4/5/6 lines output for option） |
| Finished product unfolded size (mm) | L200*W200 ±2 |
|
Finished product folded size (mm) |
L100*W200 ±2 |
| Jumbo roll width (mm) | 400 (12~18g/㎡×2plies) |
| Jumbo roll diameter (mm) | ≤1200 |
| Jumbo roll inner core diameter (mm) | 76.2 |
| Production speed | about 1200sheet/min |
|
Equipment power (KW) |
7.7 （380V, 50HZ） |
|
Equipment weight (T) |
1.8 (2 lines output) |
| Equipment overall size (L*W*H) (mm） | 3700*1650*1700 |
