HX-230-4

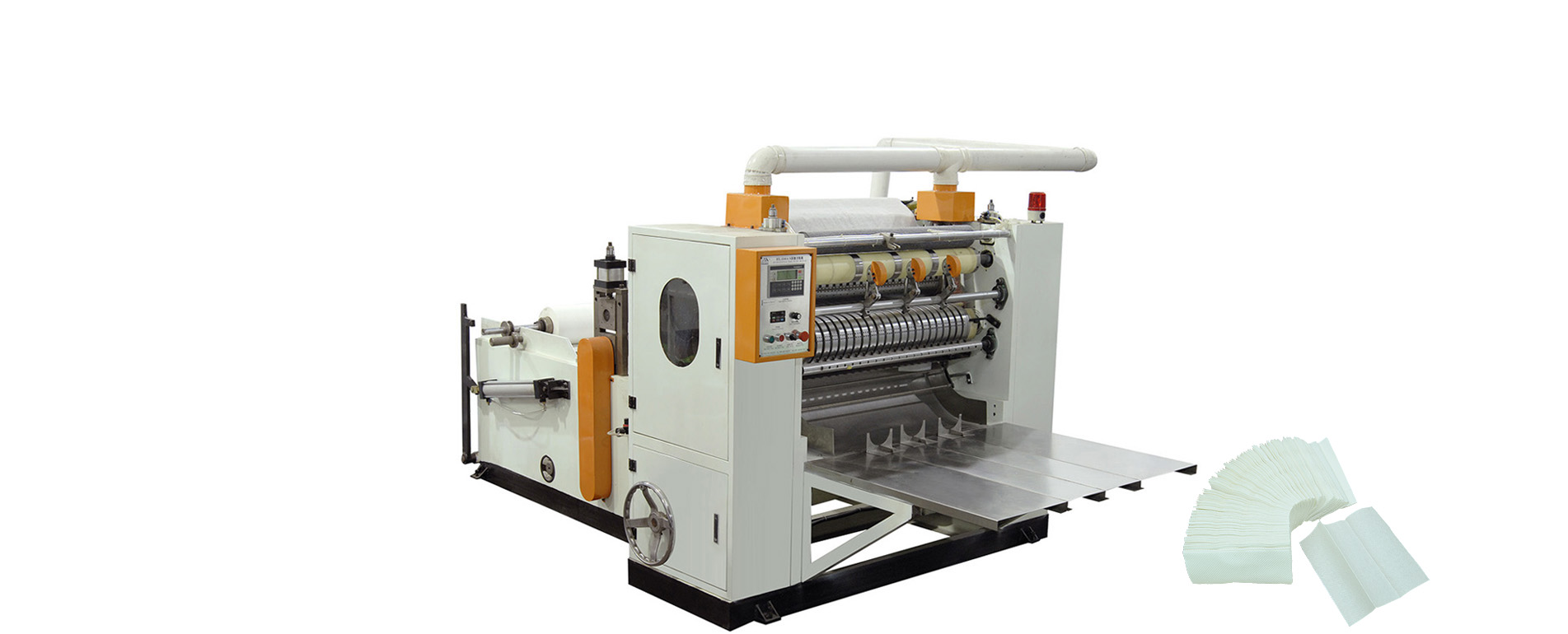

Automatic N fold Hand towel paper machine
Equipment Introduction
Automatic N-fold Towels Folding machine makes the towel paper to emboss, cut and then interactive folding into “N - shaped” towels , which are widely used in the hotels, airports, offices and kitchens for wiping hands. The towels can be easily drawn out one after another from the paper dispensers or packaging boxes. The Machine with high speed and products are in neat folding.
Main Characteristic
1.Steel to steel roll embossing, pneumatically press, embossing pattern can be customized.
2. Adopts synchronous belt transmission, transmission ratio is accurate, low noise.
3. Pneumatically type paper cutting blade, auto separation when the machine is stopped, convenient to pass through the paper.
4. PLC programming control, electronic counting, equip with inching switches in the front and back.
Technical Parameter
| Jumbo roll Maximum width (mm） | 920（4 lines output） |
| Jumbo roll Maximum diameter (mm） | 1200 |
| Finished product unfolded size (mm） | 230 x 230 |
| Production speed (sheet/min) | 1200-1400 |
|
Equipment power (KW) |
20.5（380V 50HZ） |
|
Equipment weight (T) |
about 2.2 |
| Equipment overall size (L×W×H) (mm） | 3000*3200*1900 |
