HX-170-400(390)

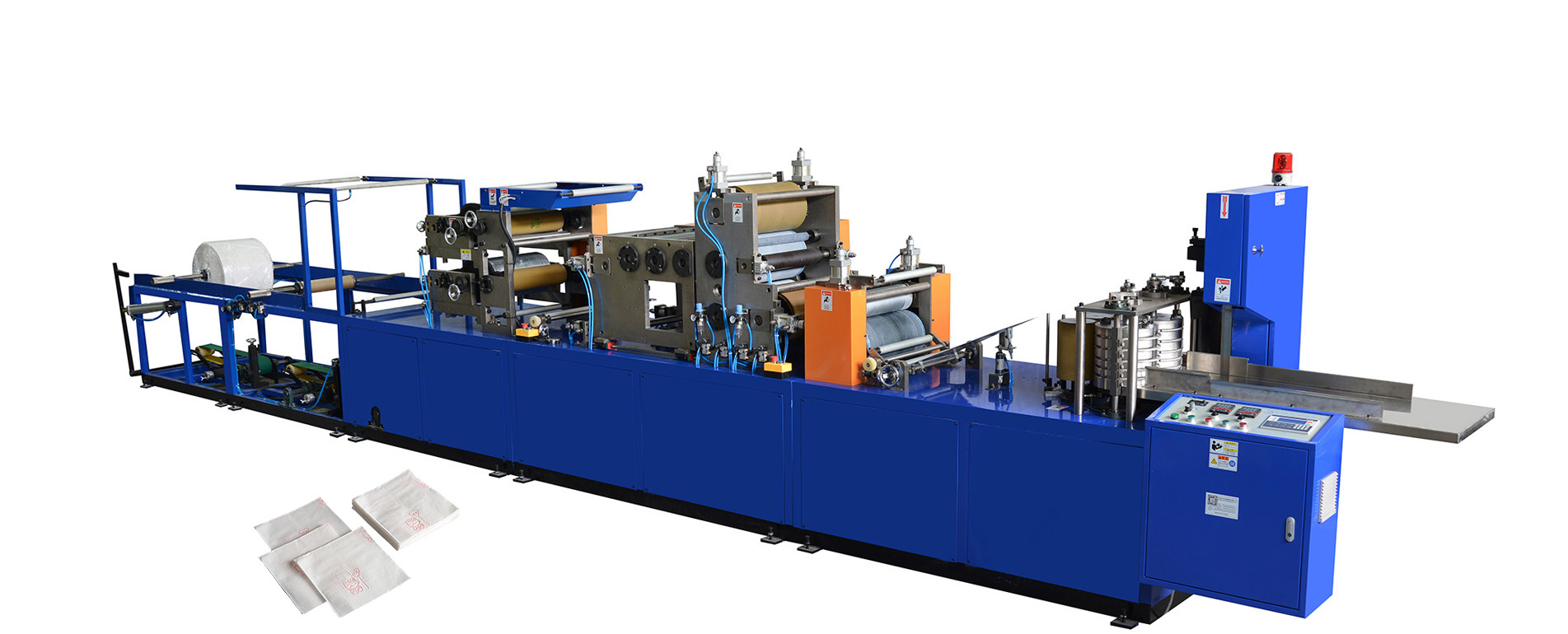

Napkin paper machine with glue lamination

Video

Equipment introduction

This machine is to print, emboss and automatically fold the rolled paper which is cut well into square or rectangular Napkin Paper.( Can add 1-4 colors water ink printing system for printing diversified fine pattern, brand, with characters of clear and bright printing, exact overprint, high speed and stable running, is preferred equipment for processing good quality napkin paper.)

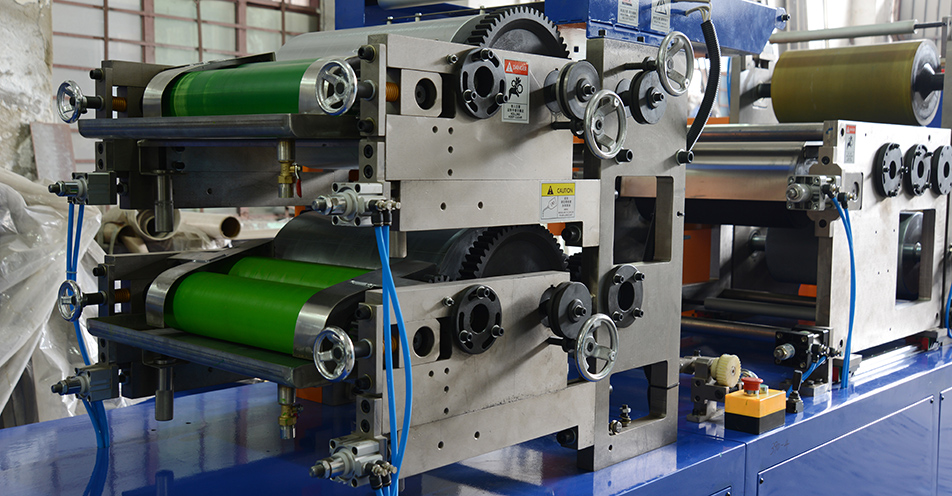

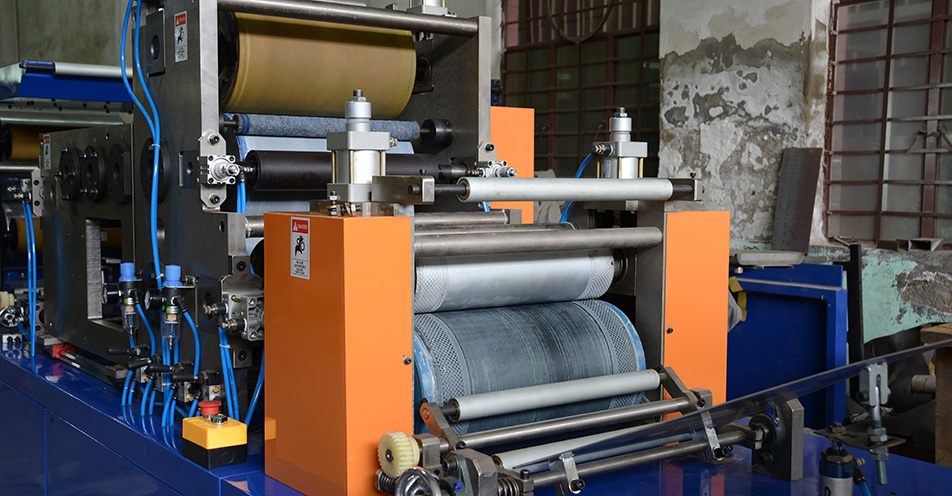

This machine consist of unwinding device, glue lamination device, embossing device, register adjustment device, lengthways folding device-, feeding device, crosswise folding device and cutting device.

Technical Parameter

Production speed (pcs/min) 600-800
Finished product folded size(mm) 195*195
Jumbo roll width (mm) 390
Jumbo roll diameter(mm) 1200
Finished product unfolded size (mm) 390*390
Equipment power (KW) 16.5
Equipment overall size (L×W×H)(mm) 11200*1300*2000
